The KTI – SAUTER TURBO is used when high performance is required for tempering concrete.
The TURBO produces hot water as well as hot air with only one burner. It achieves water temperatures of 85 °C and air temperatures of 250 °C.
The TURBO first sends the combustion air through a heat exchanger to generate hot water. It then flows through the sand and rock silos. The thermal energy is virtually fully utilized in the process.
The KTI SAUTER TURBO generates Hot air and hot water with only one central burner. While the required fresh water is heated via the heating coil, a mixture of hot Combustion gas and air through the silos to temper the aggregates and the sand. Thus, all the thermal energy is used for heating the concrete and Losses minimized. If high to very high performance is required, the KTI SAUTER TURBO is the most economical system The TURBO concept is based on SAUTER heating components that have been tried and tested over many years and have proven to be absolutely reliable. Only materials and parts that meet the highest standards are used. These include, among other things, a Stainless steel heat exchanger, a perfect insulated hot water tank (6 or 8 m³) and a modern burner for robust operation with a Power 1000 or 1500 kW. All TURBOs are supplied with an integrated STEAM function for fast Defrosting the aggregates with steam supplied. Injection of water into a mixture of hot air and exhaust gas increases the effectiveness at very high temperatures. Hereby the concrete heating is possible within a very short period of time. The TURBO is not classified as pressure equipment and therefore does not have to undergo the annual inspections, which makes the Reduces maintenance costs.
Gallery

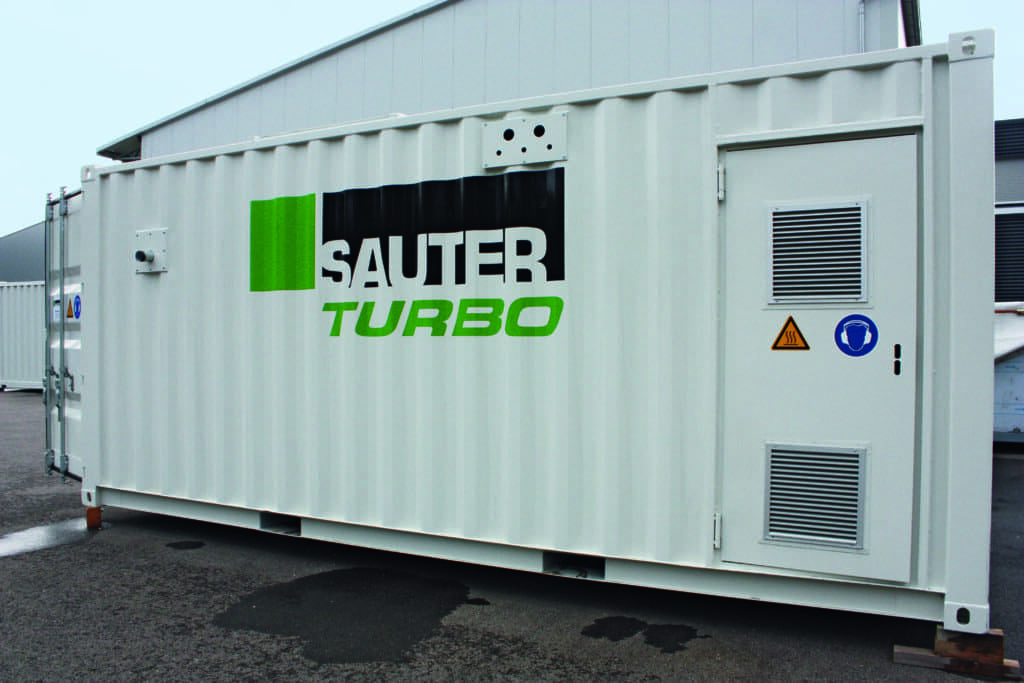

Containerized TURBO with 1000 kW heating power.

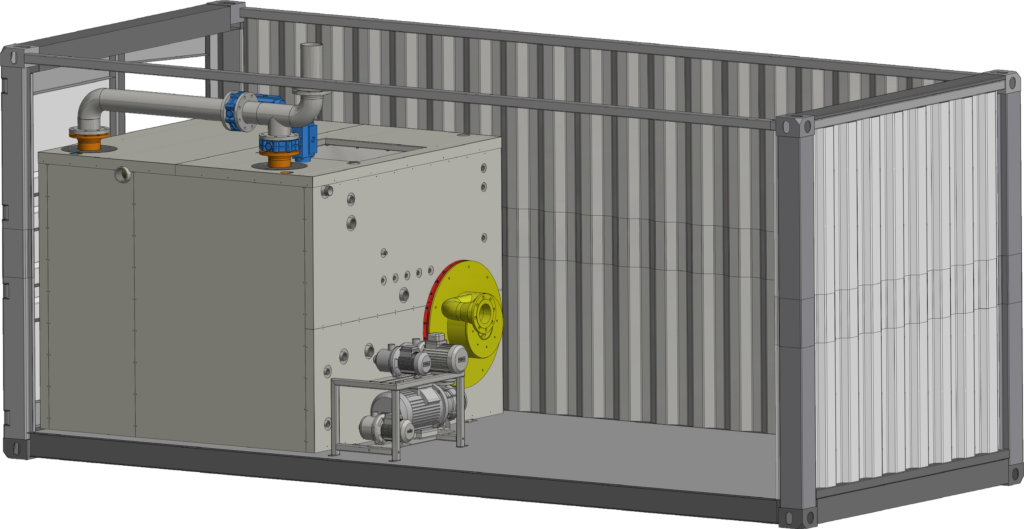

Illustration of the design of a TURBO plant for silo heating and hot water production with only one burner.

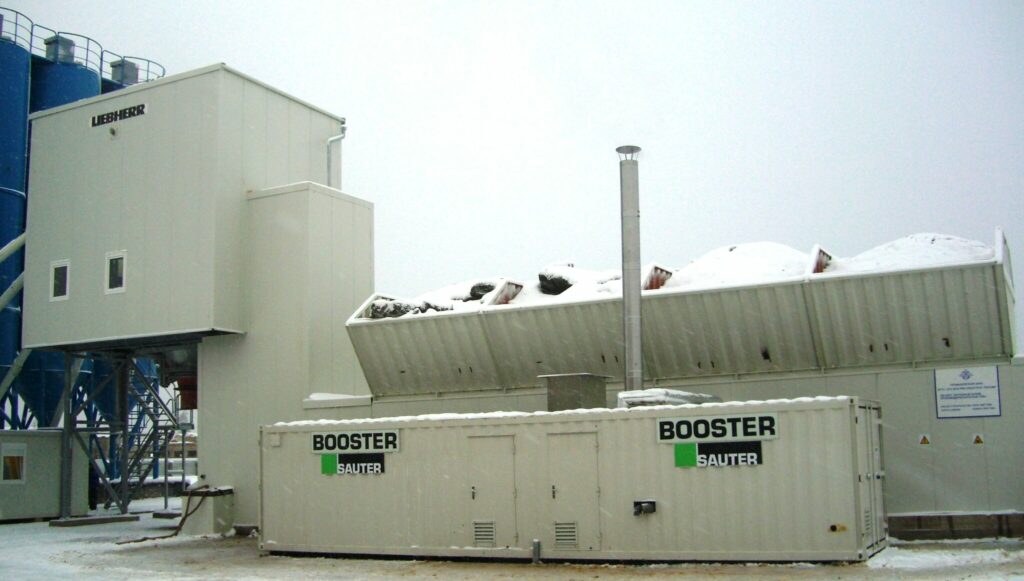

The BOOSTER is a TURBO equipped with an additional heat exchanger that sends pure hot air through the silos.
The KTI – SAUTER CombiMaster is used when the fresh concrete has to be heated in winter before processing and cooled in summer.
With the KTI – SAUTER CombiWater, you can produce ice water and hot water – with just one system.
